Spal Ez Fan Relay Install Kit

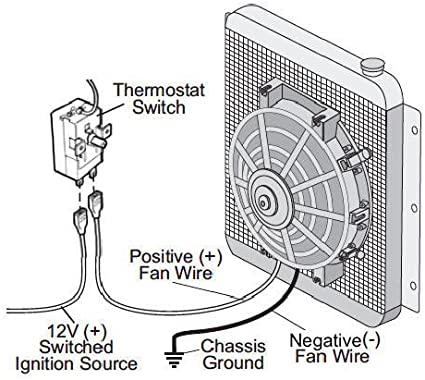

We probably get more questions about how to wire up an electric fan properly than anything else. Because of this, we put together a SPAL EZ fan relay installation kit. This is by far the easiest way to set up your SPAL electric fan on the market. This will work with all SPAL fans including the low profile 16" fan we sell. The relay comes with a temperature probe attached to it, so no need to weld in a separate bung to the side of your aluminum radiator. To use this relay, simply stick the temperature probe inside the radiator fins, or inside the top radiator hose. The temperature probe wire is skinny enough that when your radiator hose is clamped down, you will not develop any leaks. The relay has a dial on it, so you can set whatever temperature you want the fan to come on, and that's it! If you are not great with electrical work, this is the kit for you.

Works with All BMW chassis.

Adjustment Range: 160-240 degrees F

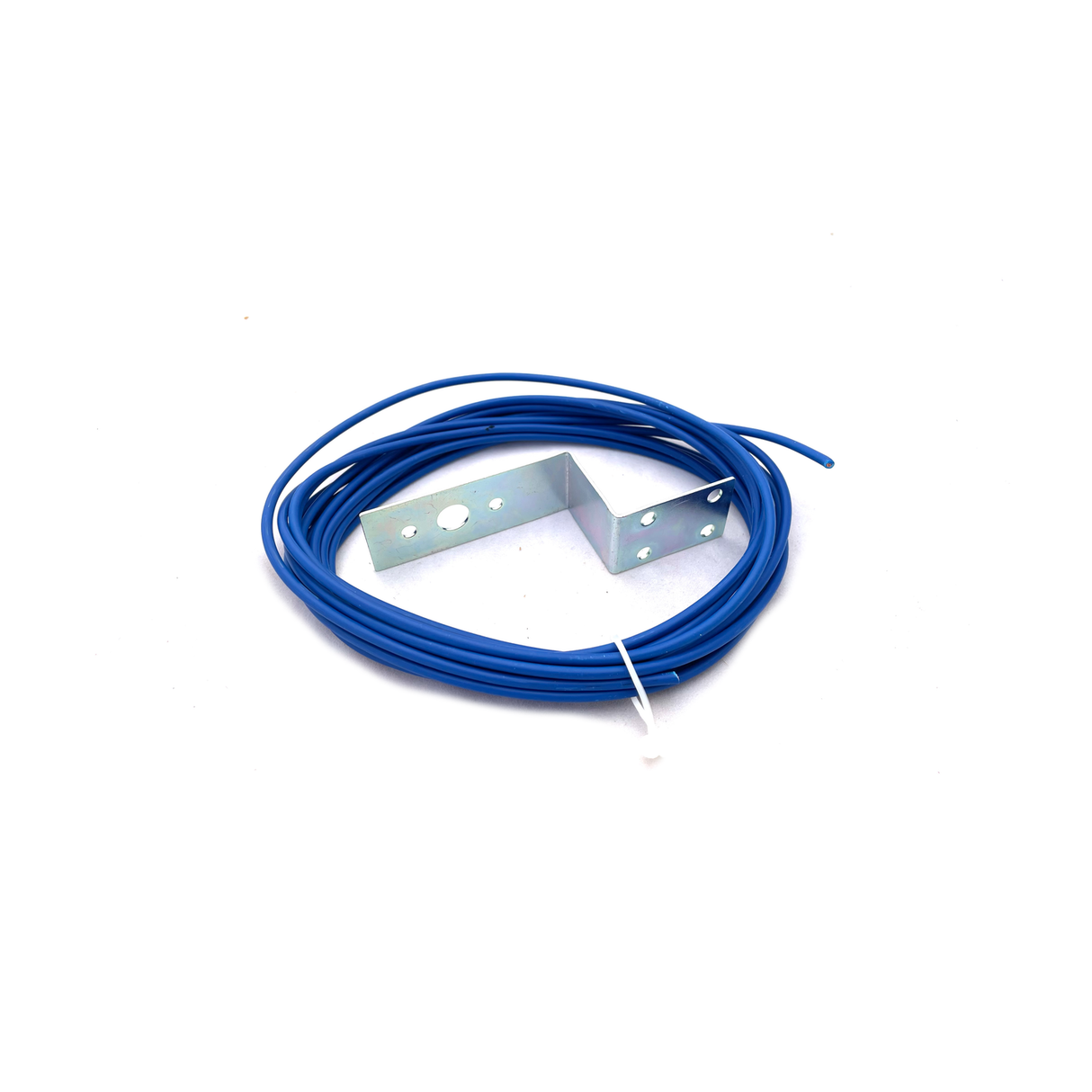

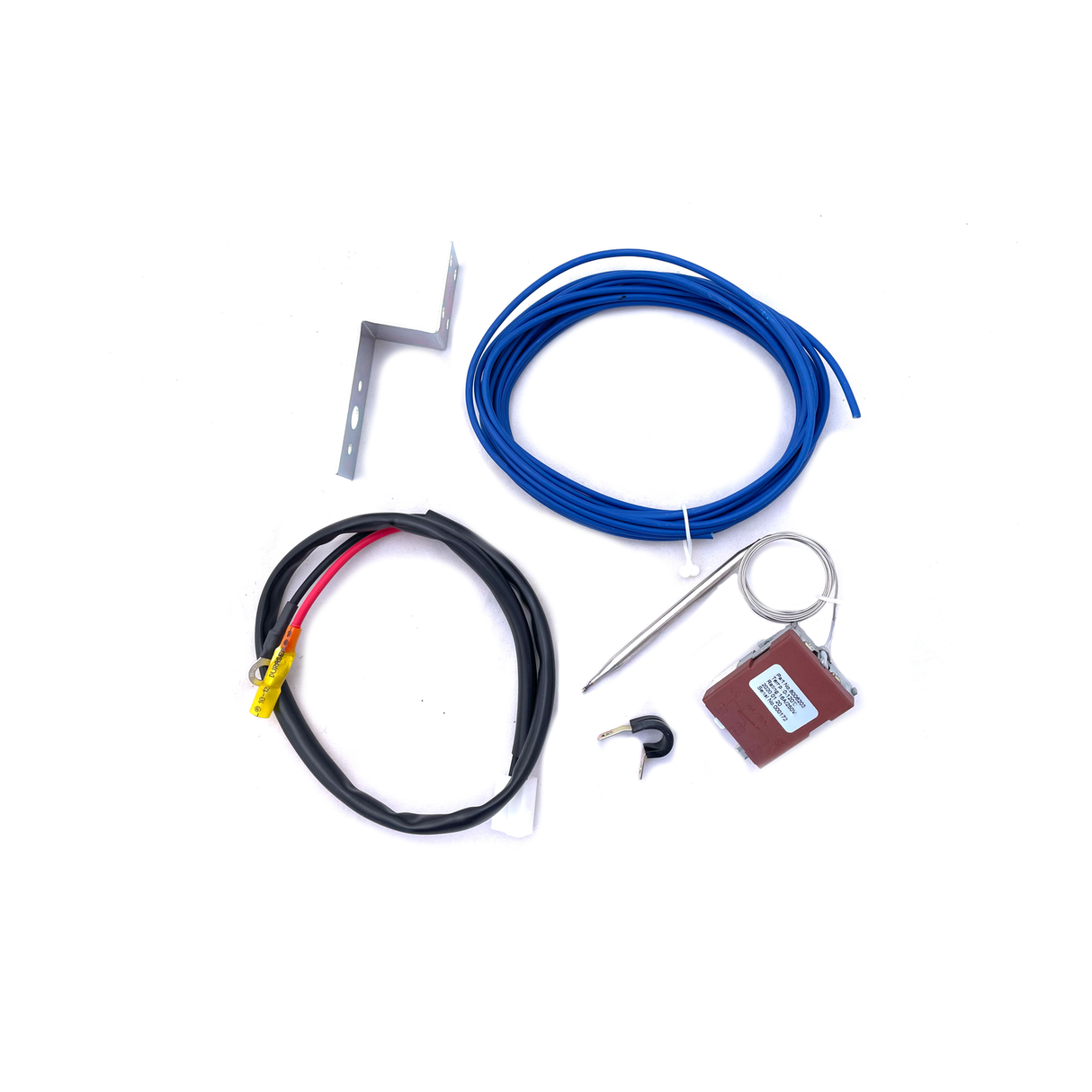

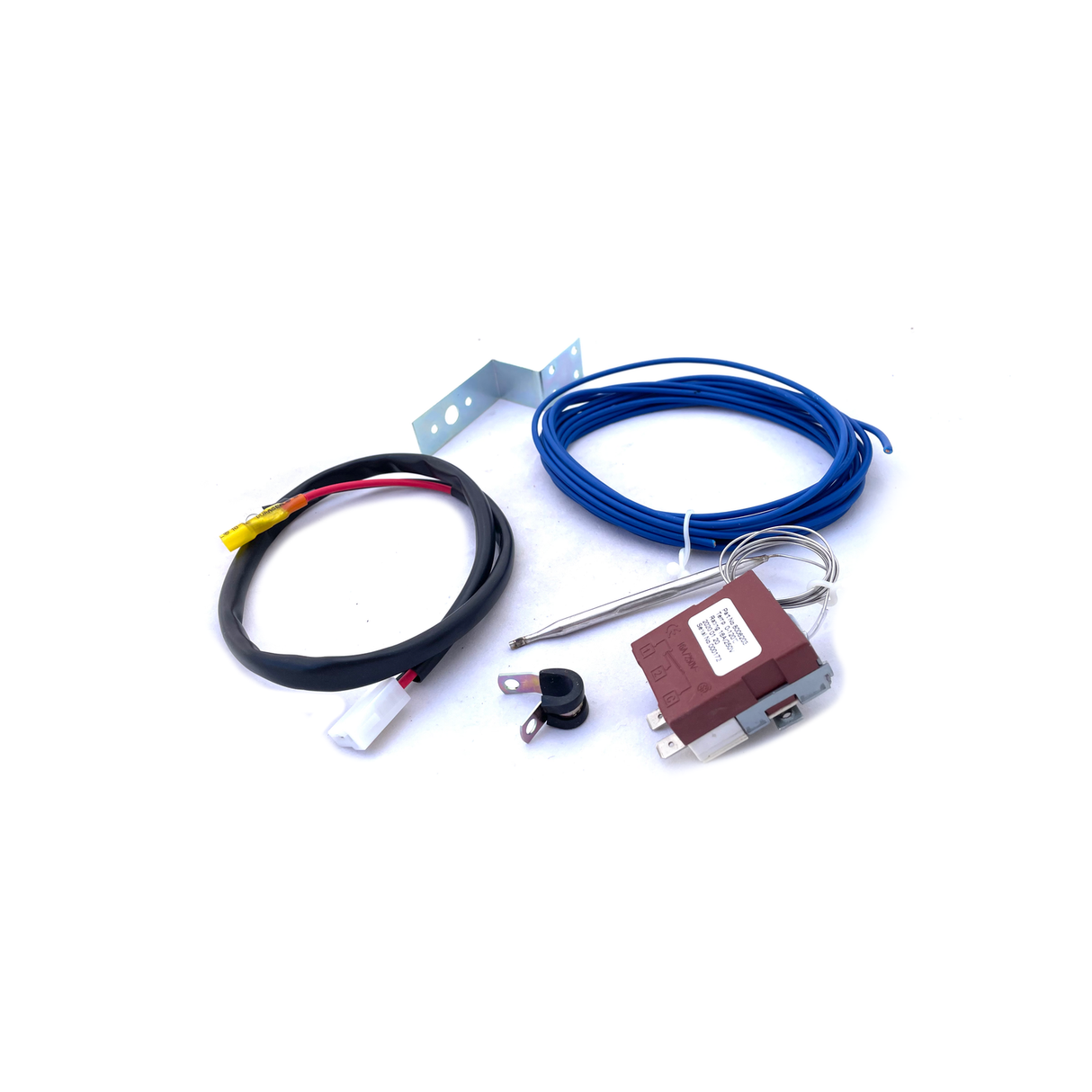

Kit Includes:

• SPAL EZ Fan Relay With Probe
• Mounting Bracket
• SPAL Fan Pigtail


Installation Instructions: CLICK HERE

Note: This unit does not have a high and low fan setting. This will only turn the fan on and off at a preset temperature. If you are looking for a more complex high/low fan setup, please see the SPAL 185 Degree Fan Relay Kit we sell:

SPAL 185 Degree Fan Relay Install Kit
